Hey there! If you’ve ever driven past a beautifully lit yard at night and thought, “I want that for my place,” you’re in the right spot. A couple of years ago, I decided to add low-voltage landscape lighting to my home to highlight my driveway and garden, and it totally transformed the vibe. Not only does it make my property look sharp, but it also adds safety for late-night car tinkering in the garage. If you’re wondering how to wire low-voltage landscape lighting, I’m excited to share my experience with you.
This project is easier than it sounds, and it’s perfect for car enthusiasts or homeowners in the USA looking to boost curb appeal. Let’s roll up our sleeves and light up your outdoor space!
Why Choose Low-Voltage Landscape Lighting?
When I started this project, I wasn’t sure what type of lighting to go with. I learned that low-voltage landscape lighting runs on 12 volts instead of the standard 120 volts used in home wiring. This makes it safer, easier to install, and perfect for DIYers like me. The lower voltage means less risk of shock, so I felt confident working with it.
I chose low voltage lighting because it’s versatile. You can use it to light pathways, highlight trees, or show off your car parked in the driveway. It’s also energy-efficient, which saves me money on my electric bill. Plus, the soft glow makes my yard feel warm and inviting, like a showroom for my classic car. Whether you’re sprucing up your home or garage area, low-voltage lighting is a fantastic choice.
Understanding Low-Voltage Lighting Systems
Before I grabbed my tools, I wanted to understand how these systems work. A low-voltage lighting setup has a few key parts: a transformer, low-voltage wire, light fixtures, and sometimes a timer or photocell. The transformer is the heart of the system—it steps down your home’s 120-volt power to 12 volts. The wire carries that power to the fixtures, which can be path lights, spotlights, or deck lights.
I was surprised at how simple the wiring is. You don’t need to bury the wires deep or use conduit like with standard electrical projects. The fixtures just clip onto the wire, making it easy to add or move lights later. Knowing this gave me the confidence to tackle the project without feeling overwhelmed.
Tools and Materials You’ll Need
I’m all about being prepared, so I gathered everything before starting. Here’s what I used to wire my low-voltage landscape lighting:
- Low-voltage lighting kit: Includes a transformer, wire, and fixtures.
- Extra low voltage wire: In case you need more length.
- Wire cutters/strippers: For trimming and preparing the wire.
- Screwdriver: To secure the transformer and fixtures.
- Voltage tester: To check the system’s power.
- Shovel or spade: For burying wire, if needed.
- Wire connectors: For joining wires or fixing mistakes.
- Stakes or clips: To secure the wire along the ground.
- Timer or photocell: To automate the lights.
- Safety glasses and gloves: To protect yourself while working.
- Tape measure: To plan your layout.
I bought a kit from a home improvement store for about $100, which had everything I needed for my small setup. If you’re lighting a larger area, you might need extra fixtures or wire. For my garage area, I chose weather-resistant fixtures to handle rain and dust.

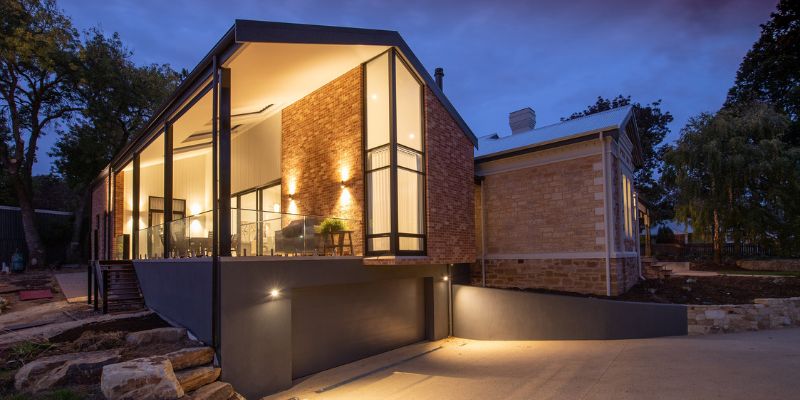

Planning Your Lighting Layout
Planning was the most important step for me. I didn’t want my yard looking like a runway or my lights burning out because I overloaded the system. I started by sketching my property on paper, marking where I wanted lights. I decided to light the path to my garage, spotlight a tree, and add some lights along the driveway to show off my car at night.
I learned that each transformer has a wattage rating, like 100 or 200 watts. You add up the wattage of your fixtures to make sure they don’t exceed the transformer’s capacity. My kit had 10-watt fixtures, so I used eight to stay under my 100-watt transformer’s limit. I also planned the wire path to keep it short and avoid crossing driveways or lawns where I mow. This step saved me from redoing things later.
Choosing the Right Transformer
Picking a transformer was a bit confusing at first. I found that transformers come in different sizes, measured in watts. A bigger transformer can handle more lights, but it’s pricier. I chose a 100-watt transformer for my small setup, but if you’re lighting a big yard, you might need 200 or 300 watts.
I also looked for a transformer with a timer or photocell. A photocell turns the lights on at dusk and off at dawn, which is super convenient. My transformer has both, so I can set it to run for a few hours or all night. I mounted mine on the garage wall, near an outdoor outlet, to keep it protected from rain. Make sure your transformer is weatherproof or installed in a dry spot.
Step-by-Step Guide to Wiring Low Voltage Landscape Lighting
Now for the fun part—wiring the system! I’ll walk you through the steps I followed to get my lights shining.
Step 1: Mount the Transformer
I started by mounting the transformer on my garage wall, about a foot off the ground to avoid water. I used a screwdriver to secure it with the provided screws. Then, I plugged the transformer into a nearby outdoor outlet. I made sure the outlet was GFCI-protected for safety, which cuts power if there’s a short. If your outlet isn’t GFCI, you can add a GFCI adapter for about $20.
Step 2: Lay Out the Wire
Next, I rolled out the low-voltage wire along my planned path. I started at the transformer and ran the wire to each light location, leaving some slack for adjustments. I used stakes to hold the wire in place temporarily. For my driveway, I tucked the wire under the gravel to keep it hidden. I didn’t bury the wire yet—I wanted to test everything first.
Step 3: Install the Light Fixtures
I placed each fixture where I wanted it, like along the path and under the tree. Most low-voltage fixtures have a clip or connector that pierces the wire to make contact. I pushed the wire into the clip until it clicked, making sure the connection was tight. For spotlights, I adjusted the angle to aim at the tree or my car. I staked the fixtures into the ground, but for deck lights, you’d screw them into place.
Step 4: Connect the Wire to the Transformer
Back at the transformer, I stripped about half an inch of insulation from the wire ends using my wire strippers. My transformer had two terminals labeled “12V” or “Common” and “Hot.” I inserted one wire into each terminal and tightened the screws. Some transformers have a single wire input, so check your manual. I double-checked that the wires were secure to avoid loose connections.
Step 5: Test the System
With everything connected, I turned on the transformer and flipped the switch. My lights came on, and I felt like a pro! I walked around to check each fixture, making sure they were bright and aimed right. One light was dim, so I rechecked the connector and found it wasn’t fully clipped. After fixing it, all the lights glowed perfectly. If nothing works, use a voltage tester to check the transformer’s output or the wire connections.
Step 6: Bury or Secure the Wire
Once I was happy with the setup, I buried the wire about 2-4 inches deep along the path using a spade. For areas I didn’t want to dig, like under gravel or mulch, I just tucked the wire out of sight. I used clips to secure the wire along fences or walls. This step keeps the wire safe from lawnmowers and looks tidy.
Step 7: Set the Timer or Photocell
I set my transformer’s photocell to turn on at dusk and off at dawn. If your transformer has a timer, you can program specific hours, like 6 PM to midnight. I tested it over a few nights to make sure it worked right. This automation means I never have to remember to turn the lights on or off.
Choosing the Right Fixtures
Picking fixtures was my favorite part. There are so many styles, from path lights to spotlights to wall-mounted lights. For my driveway, I chose path lights with a soft glow to guide the way. For the tree, I used a spotlight to create a dramatic effect. I also added a small floodlight to shine on my car when it’s parked outside.
I looked for weather-resistant fixtures made of metal or durable plastic to handle rain and sun. LED fixtures are my go-to because they’re energy-efficient and last longer than halogen bulbs. I checked the wattage of each fixture to stay under my transformer’s limit. If you’re lighting a garage area, go for brighter fixtures to make working at night easier.
Common Wiring Methods: Hub vs. Loop
I learned there are different ways to wire low voltage lighting, and choosing the right one depends on your layout. I used the hub method, where I ran a single wire from the transformer to a central spot, then branched out to each fixture. This kept the wire runs short and made it easy to add lights later.
Another option is the loop method, where you run the wire in a circle, connecting both ends to the transformer. This can help prevent voltage drop, where lights farther from the transformer get dim. My setup was small, so the hub method worked fine, but for longer runs, a loop might be better. Plan your layout to decide which method suits your yard.
Dealing with Voltage Drop
Voltage drop was a new term for me, but it’s important. If your wire runs are too long or you have too many fixtures, the voltage can drop, making lights dimmer the farther they are from the transformer. I kept my wire runs under 50 feet and used 14-gauge wire, which is thicker and handles power better than 16-gauge.
To avoid voltage drop, I also split my lights into two runs from the transformer, each with four fixtures. If you’re lighting a big area, consider a larger transformer or multiple smaller ones. I tested my system with a voltage tester to make sure each fixture got enough power, which saved me from dim lights.

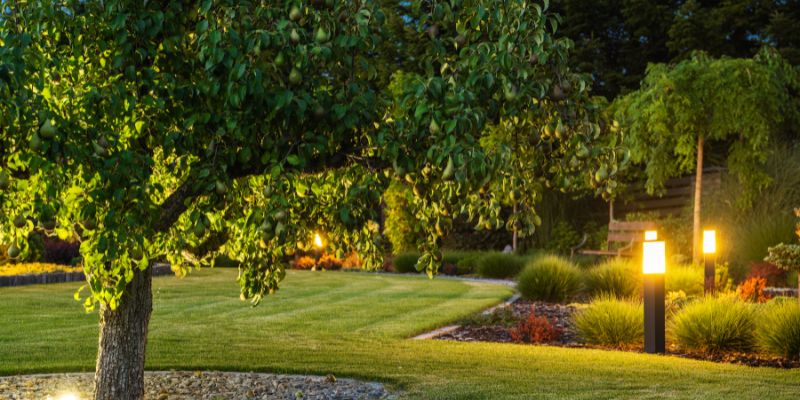

Safety Tips for Wiring Low-Voltage Lighting
Even though low voltage is safer than standard wiring, I took precautions. Here’s what kept me safe:
- Turn off the transformer and unplug it before working on the wires.
- Use a voltage tester to confirm the system is off.
- Wear gloves and safety glasses to protect against cuts or debris.
- Keep wires away from sharp edges or hot surfaces, like car exhausts.
- If you’re unsure about any step, consult an electrician or the kit’s manual.
I had a buddy help me test the system, which made it safer and more fun. Always double-check connections to avoid shorts or flickering lights.
Maintaining Your Low-Voltage Lighting
To keep my lights shining, I do a little maintenance. I clean the fixtures every few months to remove dirt or bugs, which can dim the light. I check the wire for cuts or exposed spots, especially after mowing. If a fixture stops working, I test the connector or replace the bulb if it’s not LED.
I also inspect the transformer for signs of wear, like rust or loose screws. In winter, I clear snow from the fixtures to keep them visible. Regular upkeep keeps my system looking great and saves me from costly repairs.
Benefits of Low-Voltage Landscape Lighting
This project was a game-changer for my property. Here’s why I love it:
- Boosts Curb Appeal: My driveway and garden look amazing at night, like a pro landscaped my yard.
- Improves Safety: The path lights make it easy to walk to the garage without tripping, and the driveway lights guide my car in.
- Energy Efficient: My LED fixtures use less power than my old porch light, saving me money.
- Easy to Expand: I added more lights last year without rewiring the whole system.
- Shows Off My Car: The floodlight makes my classic car look like it’s on display, even at night.
For car enthusiasts, this lighting is perfect for highlighting your vehicle or making your garage area more functional. It’s a small investment with a big payoff.
Common Challenges and How to Overcome Them
I hit a few bumps along the way, so let me save you some trouble. One issue was voltage drop—my farthest light was dim until I split the run into two shorter ones. Another challenge was burying the wire without cutting it. I used a flat spade and went slowly to avoid nicks.
Some fixtures didn’t clip onto the wire easily at first. I found that cleaning the wire with a cloth helped the connectors grip better. If your lights flicker, check for loose connections or a faulty transformer. I also struggled with aiming spotlights perfectly—it took some tweaking to get the tree lit just right.
Why This Project Is Worth It
Wiring low-voltage landscape lighting was one of my favorite DIY projects. It took a weekend, cost less than $150, and made my property look like a million bucks. My garage area is safer and more inviting, and I love showing off my car under those lights. The project was fun, and I learned skills I can use for other outdoor upgrades.
Whether you’re a gearhead or just want a prettier yard, this is a project you can tackle. It’s rewarding to see your hard work light up every night, and you don’t need to be an electrician to do it. Grab a kit and get started—you’ll be amazed at the difference.
Conclusion
So, there you have it—everything I learned about how to wire low-voltage landscape lighting. From planning the layout to clipping in those fixtures, this project was a blast. My driveway and garden now glow with style, and my garage area is safer and more functional. Whether you’re highlighting your pride-and-joy car or just want a welcoming yard, low-voltage lighting is the way to go.
It’s easy, affordable, and makes a huge impact. Grab your tools, follow these steps, and get ready to enjoy a beautifully lit outdoor space. Here’s to bright nights and stunning curb appeal!
Frequently Asked Questions
Can I install low-voltage landscape lighting myself?
Yes, you can! I did it with no electrical experience. The system is safe and simple; just follow the kit’s instructions and plan carefully.
Is low-voltage lighting safe?
Totally! The 12-volt system is much safer than 120-volt wiring. I felt confident working with it, but always turned off the transformer when wiring.
Do I need to bury the low-voltage wire?
Not always. I buried mine for a clean look, but you can’t tuck it under mulch or gravel. Just keep it safe from lawnmowers.
How do I avoid dim lights at the end of the wire?
Keep wire runs short and use thicker wire, like 14-gauge. I split my lights into two runs to prevent voltage drop, and it worked great.
Can I use LED bulbs in low-voltage fixtures?
Yes, and I recommend them! My LED fixtures are super efficient and last longer than halogens, saving me money.
What if my lights don’t turn on?
Check the transformer, wire connections, and clips. I had a dim light because a clip wasn’t tight—re-clipping it fixed the issue.
Can I add more lights to my system later?
Yup! I added two more fixtures last year. Just make sure the total wattage doesn’t exceed your transformer’s capacity.
