Hey there, friend! So, you’re looking to learn how to recess a door hinge? I’m thrilled you’re here because this is one of those projects that can make your door swing smoothly and look like it was installed by a pro. I remember the first time I tried recessing hinges on a new bedroom door—my hands were shaky, and I was worried I’d mess it up. But after a few tries, some mistakes, and a lot of sawdust, I got the hang of it. Whether you’re hanging a new door, upgrading old hinges, or just diving into a DIY adventure, recessing a door hinge is a skill you can master.
I’ve been through the process, learned the tricks, and I’m excited to share everything with you. Let’s sit down, like we’re working together in your garage, and I’ll walk you through each step to get those hinges perfectly recessed. Ready to make your door project a success? Let’s get started!
Why Do You Need to Recess a Door Hinge?
Recessing a door hinge means cutting a shallow slot, or mortise, into the door and frame so the hinge sits flush. This lets the door close tightly and swing smoothly without wobbling. If you don’t recess the hinge, it sticks out, leaving gaps or making the door misaligned. I learned this the hard way when I tried skipping the recess on a closet door—it looked sloppy and wouldn’t close right.
Most interior and exterior doors need three hinges, each recessed about 1/16 to 1/8 inch deep, depending on the hinge thickness. Recessing ensures the door fits snugly in the frame, looks clean, and works properly. It’s a must for new doors without pre-cut slots or when replacing hinges that don’t match the old ones.
Tools and Materials You’ll Need
Before we start cutting, let’s gather the tools. I once tried using a dull chisel, and it made a mess of my door edge—big mistake. Here’s what I keep ready now:
- Sharp Chisel: A 3/4-inch or 1-inch wood chisel is ideal for most hinges.
- Hammer or Mallet: To tap the chisel for clean cuts.
- Utility Knife: To score the wood and prevent splintering.
- Tape Measure and Pencil: For marking hinge locations.
- Hinge Template or Jig: Makes marking and cutting easier, especially for beginners.
- Screwdriver: To secure the hinge with screws.
- Router with Straight Bit (Optional): For faster, precise cuts if you’re comfortable with power tools.
- Sandpaper: To smooth the recessed edges.
- Safety Glasses and Gloves: To protect yourself from wood chips or sharp tools.
- Hinges and Screws: Ensure you have the hinges you’ll install.
- Level: To check that the door and hinges are aligned.
I bought a chisel set for about $15, and it’s been worth every penny. A hinge jig costs around $20-$30 and saves tons of time. If you’re working on a metal door, you’ll need specialized tools like a metal-cutting router bit, but we’ll focus on wood doors since they’re most common.

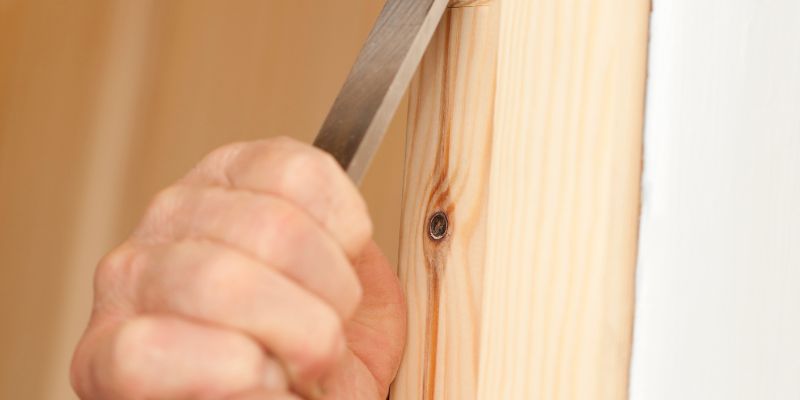

Preparing Your Door for Recessing
Prep work is where you set yourself up for success. My first attempt was a bit crooked because I rushed the setup. Here’s how I get ready now:
Decide where the hinges will go. Standard placement is three hinges: one 5-7 inches from the top, one 10-12 inches from the bottom, and one centered between them. I measure from the top of the door and mark with a pencil. If you’re replacing hinges, use the existing slots as a guide, but check that the new hinges match.
Lay the door flat on sawhorses or a sturdy table to keep it stable. If the door is already hung, you can work on it in place, but I find it easier to remove it. Use a hinge template if you have one—it’s like a stencil that shows exactly where to cut. Tape it to the door’s edge, aligning it with your marks.
Double-check your measurements. I always measure twice to avoid cutting in the wrong spot. If you’re recessing hinges on the door frame, too, mark those spots to match the door’s hinges.
How to Reinstall a Door Hinge by Hand
Let’s start with the hand-chisel method—it’s beginner-friendly and doesn’t need power tools. This is how I recessed hinges on my first door, and it’s still my go-to for small projects. Here’s the process:
Step 1: Mark the Hinge Outline
Place the hinge on the door’s edge where you marked its position. Hold it steady and trace around it with a pencil. Then, use a utility knife to score along the outline, cutting about 1/16 inch deep. This keeps the wood from splintering when you chisel. I press firmly but carefully to make a clean line.
Step 2: Set the Depth
Check the thickness of your hinge leaf—usually 1/16 to 1/8 inch. Mark this depth on the door’s edge with a pencil. I hold the hinge against the side and mark where it sits flush. You can use a combination square for precision, but I often eyeball it and double-check as I go.
Step 3: Chisel the Mortise
Grab your chisel and hammer. Start by making shallow cuts along the scored outline, tapping the chisel gently to remove thin layers of wood. Work around the perimeter first to define the slot. I hold the chisel at a slight angle to scoop out small bits at a time. Keep your cuts shallow to avoid going too deep.
Once the outline is clear, chisel out the wood inside the slot, working toward the marked depth. I check the depth often by laying the hinge in the mortise—it should sit flush with the door’s edge. If it’s too shallow, chisel more; if it’s too deep, you’ll need to shim the hinge later.
Step 4: Clean and Test the Slot
Smooth any rough spots with the chisel or sandpaper. I run my finger along the slot (carefully!) to check for bumps. Test-fit the hinge to ensure it sits perfectly flush. If it’s uneven, chisel or sand the high spots. I spend a minute here to get it just right—it makes the door look polished.
Using a Router for Faster Recessing
If you’re okay with power tools, a router with a straight bit can recess hinges quickly and precisely. I tried this after mastering chiseling, and it’s great for multiple doors. Here’s how I do it:
- Set Up the Router: Attach a 3/4-inch straight bit and set the depth to match your hinge thickness (usually 1/16 inch).
- Use a Jig: A hinge jig clamps to the door and guides the router for a perfect slot. I bought one for $25, and it’s a time-saver.
- Route the Slot: Move the router slowly along the jig, cutting the slot in one or two passes. Don’t rush to avoid burning the wood.
- Square the Corners: Routers leave rounded corners, so use a chisel to square them off. Sand lightly for a smooth finish.
I love the router for speed, but it takes practice to control. For one-off projects, I stick with chiseling; for bigger jobs, the router shines.
Installing the Hinges
With the slots recessed, it’s time to install the hinges. This part feels like the payoff for your hard work. Here’s what I do:
- Place the Hinge: Set the hinge in the mortise, ensuring it’s flush. Mark the screw holes with a pencil.
- Drill Pilot Holes: Use a 1/16-inch drill bit to make pilot holes for the screws. This prevents the wood from splitting.
- Secure the Hinge: Screw the hinge into place with a screwdriver. I tighten just enough to keep it snug without stripping the screws.
- Test the Fit: If you’re recessing the frame too, attach the other half of the hinge to the frame’s slots, then hang the door. Open and close it to check for smooth movement.
My first door was a bit stiff because one slot was too shallow. I chiseled a bit more, and it swung perfectly.
Recessing Hinges in the Door Frame
The door frame needs matching hinge slots for the hinges to align. I mark the frame by holding the door in place and transferring the hinge positions with a pencil. The recessing process is the same: score the outline, chisel or route the slot, and install the hinge. Make sure the slots line up exactly with the door’s hinges, or the door won’t close right. I misaligned a frame slot once, and the door rubbed until I fixed it with a quick chisel adjustment.
Avoiding Common Mistakes
I’ve had my share of hiccups, so let me save you some trouble. Here are mistakes I made and how to dodge them:
- Dull Chisel: A blunt chisel tears the wood. I sharpen mine before every project.
- Cutting Too Deep: Going too deep makes the hinge sit too low, causing the door to sag. Check depth often.
- Skipping the Template: A jig ensures perfect placement. I skipped it once, and my slots were uneven.
- Rushing the Job: Slow and steady cuts are cleaner. I take breaks if I’m getting sloppy.
- Misaligned Hinges: Use a level to keep hinges straight. Crooked hinges throw off the door.
Safety First
Recessing hinges is safe if you’re careful, but accidents can happen. I always wear safety glasses to shield my eyes from wood chips. Gloves help with grip and protect from sharp chisels. If using a router, keep your hands clear of the bit and unplug it when changing bits. I nicked my finger once with a chisel—ouch—so now I stay focused and keep tools sharp.
Troubleshooting Issues
Mistakes are part of the process. If your slot is too deep, shim the hinge with thin cardboard to raise it. If it’s too shallow, chisel out more wood. If the slot is off-center, fill it with wood filler, let it dry, and recut. I patched a bad slot once with filler, and it worked fine after sanding. For major errors, like a damaged door, you might need a pro or a new door, but most issues are fixable.
Here’s a table to summarize the process:
| Step | Tool Needed | Tips |
|---|---|---|
| Mark Hinge Outline | Pencil, Utility Knife | Score deeply to prevent splintering |
| Set Depth | Hinge, Pencil | Match hinge thickness, usually 1/16 inch |
| Chisel Mortise | Chisel, Hammer | Work in thin layers, check depth often |
| Route Slot (Optional) | Router, Jig | Use a jig for precision, square corners |
| Install Hinge | Screwdriver, Drill | Drill pilot holes to avoid splitting wood |
Maintaining Your Door and Hinges
Once your hinges are recessed and installed, a little care keeps them working smoothly. I check hinge screws every few months to ensure they’re tight. A drop of lubricant on the hinge pins stops squeaking. If the door starts sticking, check the recessed slots for debris or misalignment. I had a door that rubbed the frame until I sanded a slot slightly deeper.
For exterior doors, use rust-resistant hinges to handle the weather. I learned this after a cheap hinge rusted on my patio door. Quality hinges cost more but last longer.
Choosing the Right Hinges
Not all hinges are the same. I use 3-1/2-inch butt hinges for standard interior doors—they’re sturdy and common. For exterior doors, I pick heavier 4-inch hinges for added strength. Ball-bearing hinges are great for heavy doors because they reduce friction. I upgraded to these on my front door, and it swings like a dream. Hinges cost $5-$20 each, depending on material and finish.
Match the hinge finish to your door hardware—brushed nickel, bronze, or brass—for a cohesive look. I went with bronze to match my doorknobs, and it looks sharp.
Why DIY This Project?
Recessing door hinges yourself is a budget-friendly win. I saved about $100 compared to hiring a carpenter, and the pride of hanging a door perfectly is unbeatable. It’s a skill you can use for future projects, like installing cabinets or gates. Every time I open a door I’ve worked on, I grin knowing I did it myself.
Enhancing Your Door’s Performance
Properly recessed hinges don’t just look good—they make your door function better. A well-hung door closes securely, reduces drafts, and improves your home’s energy efficiency. My living room door used to let in cold air until I recessed the hinges correctly. It’s a small detail that makes a big difference in comfort and style.
Wrapping It Up with a Smooth Swing
Friend, you’re now ready to recess a door hinge like a true DIY champ! From marking the perfect slot to chiseling a clean mortise, you’ve got all the steps to make your door swing smoothly and look fantastic. I remember how nervous I was before my first try, but with these tips, you’ll avoid my slip-ups and nail it. Grab your chisel, take your time, and enjoy the process.
There’s nothing like the satisfaction of hanging a door that fits just right, all thanks to your hard work. So, go tackle that project, and let me know how it feels to open that door for the first time. You’re going to love it, and I’m cheering you on!
FAQ: Your Questions Answered
What tools do I need to recess a door hinge?
A sharp chisel, hammer, utility knife, and pencil are the basics. A router and jig are great for speed.
How deep should a hinge slot be?
Usually 1/16 to 1/8 inch, matching the hinge thickness. Test-fit the hinge to check it’s flush.
Can I recess a hinge without a chisel?
It’s tough without one. A router works, but chisels are best for beginners and small jobs.
What if I cut the slot too deep?
Shim the hinge with thin cardboard to raise it. It’s a quick fix.
Do I need to recess hinges on the door frame too?
Yes, the frame needs matching slots for the hinges to align properly.
How long does it take to recess a hinge?
About 10-15 minutes per hinge with a chisel, less with a router. Go slow for accuracy.
Can I do this on a metal door?
It’s trickier. Use a router with a metal-cutting bit or call a pro for metal doors.
